Dimensions of a Jeep Wrangler

The Jeep Wrangler is a sports utility vehicle manufactured by Chrysler. Although the specifications of the models vary, they all utilize live axles.

Dimensions of a Jeep Wrangler: the YJ (1987-2005)

The Jeep YJ 1987-89 models are 152.6 in (3876 mm) long, while the 1990-92 versions are 153 in (3886 mm) long. The 1993-95 models are 151.9 in (3860 mm) long. The width is 66 in (1676 mm). The height is 71.9 in (1825 mm) for the 1993-95 models.

For the 1993-95 Soft Top, the height is 72 in (1827 mm) while for the 1987–1992 Hardtop it is 69.6 in (1769 mm). The fuel capacity is 15 U.S. gal. Some models have a higher capacity at 20 U.S. gal. The wheelbase is 93.4 in (2373 mm) for all the models.

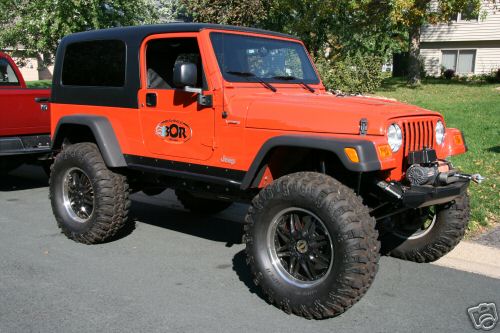

Dimensions of a Jeep Wrangler: the TJ (1997-2006)

The wheelbase is 93.4 in (2,370 mm (standard) or 103.4 in (2,630 mm) LWB. The length of the 1997-99 models is 151.2 in (3841 mm). For the 2000-03 models it is 155.4 in (3947 mm); for the 2004-06 SWB it is 154.9 in (3934 mm), while the 2004-06 LWB is 171 in (4343 mm) long.

The width for the 1997–2003, 2004-06 LWB is 68.3 in (1735 mm); for the 2004-06 SWB it is 66.7 in (1694 mm). The height is 70.2 in (1784 mm) for the 1997-99 models, 71.1 in (1805 mm) for the 2000-01 versions and 70.9 in (1800 mm) for the 2002-03 & 2004-06 LWB. For the 2004-06 SWB models it is 71.2 in (1808 mm).

The dimensions of a Jeep Wrangler in the TJ class give it a fuel capacity of 15 U.S. gal (57 L; 12 imp gal). Others have a capacity of 19 U.S. gal (72 L; 16 imp gal). The jeep is a 2 door convertible. The engines used are 2.5 L AMC 150, 2.4 L PowerTech I4 and 4.0 L AMC 242 I6.

The transmissions are 3-speed automatic, 6-speed manual, 5-speed Aisin AX-15 manual and 4-speed automatic. A right hand version of the vehicle became available for export to other countries. The TJ Wrangler Rubicon came out in 2003.

Dimensions of a Jeep Wrangler: JK (2007-Present)

The wheelbase is 95.4 in (2423 mm) for the 2-door and 116 in (2945 mm) for the 4-door. The length is 152.8 in (3880 mm) for the 2-door and 173.4 in (4405 mm) for the 4-door. The width is 73.7 in (1872 mm) for the 2-door and 73.9 in (1877 mm) for the 4-door.

The height is 70.9 in (1800 mm). For the 2-door Rubicon it is 72.3 in (1836 mm). The fuel capacity is 21.6 U.S. gal (82 L; 18.0 imp gal). The engine is 3.8 L EGH V6 and the transmissions are 4-speed automatic and 6-speed manual. All the JK models have the anti-lock braking system installed.

The dimensions of a Jeep Wrangler are always being evaluated by the manufacturer. The specifications of future SUV models are based on what will bring optimum safety and performance.
