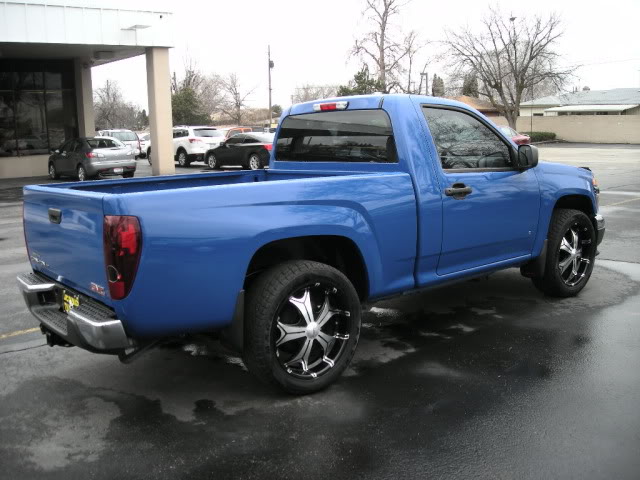

Truck Bed Dimensions for a GMC Canyon

Truck bed dimensions for a GMC Canyon are given below. Bear in mind that these vehicles can be customized. This means the size and features can be changed according to the desires of the owner. These figures are for the Canyon work truck.

Dimensions

The cargo box width is 57.2 in while the length is 72.8 in. The height is 18.6 in. The cargo volume is 44.0 ft3 while the tailgate width is 52.4 in. The cab to axle measurement is 34.2 in; the front bumper to back of cab is 110.9 in and the overall height is 65.2 in. The length is 192.4 in without the rear bumper. The wheelbase is 111.3 in, the maximum width is 67.6 in and the front head room is 39.6 in. The front hip room is 53.3 in. The front shoulder room is 57.1 in.

Equipment (Standard and Optional)

Aside from the truck bed dimensions for a GMC Canyon you should also check its other specifications. The equipment will vary depending on the model. Among the features you will find are 3.7L DOHC 5-cylinder sequential fuel injection engine, Stabilitrak, satellite radio, Bluetooth, a tire pressure monitor, side-impact air bags and solar-ray deep-tinted glass.

Some of the mechanical features are transfer cases, trailer wiring, 7-pin sealed connector, standard trailer hitch and heavy-duty suspension package. Also available are front underbody shields, engine block heaters and heavy duty batteries. Exterior features include steel wheels, bed liner and bed rail protectors.

Capabilities

The 2.9L DOHC I-4 2WD has a curb weight (lbs.) of 3,366 while the GCWR, 3.73 rear axle (lbs.) is 7,000. The max conventional trailering, 3.73 rear axle (lbs.) is 3,400. The GVWR (lbs.) is 4,850 while the maximum payload is 1,429 lbs.

The 2.9L DOHC I-4 2WD has 185 @ 5600 (horsepower @ RPM), 190 @ 2800 torque @ RPM with 19 gallon fuel capacity. The 2.9L DOHC I-4 2WD 3.73 has rear axle ratio, leaf spring rear suspension and 4-wheel antilock front disc/rear drum.

Other Information

The truck bed dimensions for a GMC Canyon also vary because there are some variants. Among them are the work truck, the SLE-1, SLE-2 and SLT.

The work truck version is equipped with a Z85 suspension package, Bluetooth for phone, OnStar2 and leather-wrapped steering wheel and a bed liner. The SLE-1 comes with many features. Among them are extended cab, on crew cab, CD/MP3 player and the power convenience package.
