Backhoe Loader Dimensions

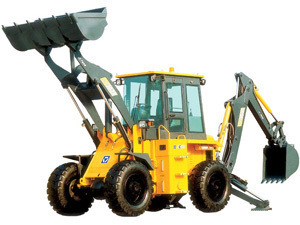

The backhoe loader (known as JCB in Europe) is a vehicle equipped with a bucket and arm on the back and the front loader set on the front. It is also called a tractor loader backhoe (TLB) in the US. Sometimes it is just called the backhoe.

Case Backhoe Loader Dimensions

The 580 Super M Wide Track has a digging depth of 14′ 5″. The min-max backhoe bucket width is 12″ – 36″ and the loader bucket capacity is 1.25 cubic yards. The dump clearance is 8′ 10″ (the full height). The net power is 90 and the operating weight is 14,250 lbs.

The 580 Super M weighs 14,250 lbs and has a dump clearance of 8′ 10″. The net power is 90 hp. The bucket load capacity is 1.03 – 1.25 cubic yards. The min-max backhoe bucket width is 12″ – 36″.

The 580 M Turbo has a 14′ 3” maximum digging depth and backhoe bucket width of 12″ – 36″ (mini/max). The loader bucket capacity is 1.03 – 1.25 cubic yards. The full height discharge is 8′ 8″. It has a net power of 80 and an operating weight of 13,359 lbs.

The 580 M has a digging depth of 14′ 3″ and the backhoe bucket width is 12″ – 36”. It has a loaded bucket capacity of 1.03 – 1.25 and dump clearance of 8′ 8″. The operating weight is 13,359 lbs and the net power is 73.

Allmand Brothers Backhoe Loader Dimensions

The TLB-220 has a digging depth of 8′ 4″ and a backhoe bucket width of 9″ – 36″. The loader bucket has a capacity of 0.33 cubic yards. The dump clearance is 6′ 4″. The net power is 20.5 while the operating weight is 3,115 lbs.

The TLB-325’s digging depth is 9′ 8″. The backhoe width is 10″ – 36″ and the dump clearance is 6′ 2″. The loader bucket capacity is 0.50 cubic yards. The dump clearance is 6′ 2″ and the net power is 25 hp. The operating weight is 3,950 lbs. It is heavier than the TLB-220.

The TLB-425 ESL weighs 4,320 lbs and has a net power of 25. The dump clearance is 5′ 11″. The loader bucket capacity is 0.5 cubic yards.
The backhoe loader dimensions as specified here are just examples. Manufacturers are always coming up with new models to meet the demands of clients and also improve performance.
