Harley Davidson Touring Dimensions

The Harley Davidson Touring models featured here are for 2010. Aside from the physical dimensions, information on the fuel capacity and running weight of each bike is provided.

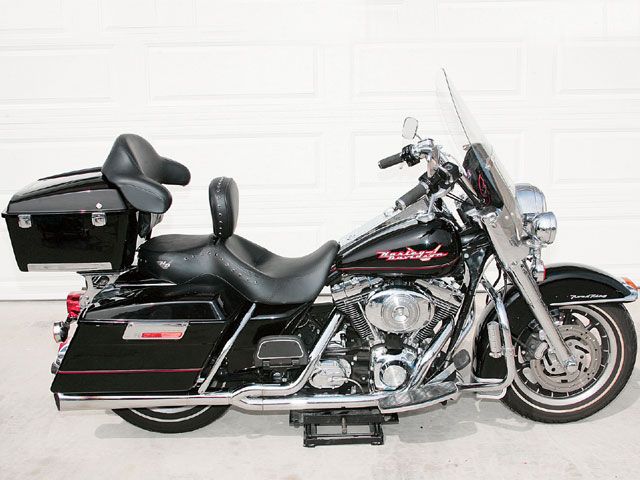

Harley Davidson Touring Dimensions: Road King FLHR

The Road King FLHR is 95.0 in. (2413.0 mm) long, 37.40 in. (949.96 mm) wide and 55.10 in. (1399.54 mm) high. The seat height: 27.30 in. / 693.42 mm (Laden2); 29.90 in. / 759.46 mm (Unladen). The ground clearance of the Road King FLHR is 5.10 in. (129.54 mm) and the rake (steering head) 26 degrees.

The trail is 6.69 in. (169.93 mm) and the fork angle is at 29.2 degrees. The wheelbase is 63.50 in. (1612.90 mm). The tires are Dunlop Harley-Davidson Series, bias narrow whitewall (front: D408F NW 130/80B17 65H; rear: D407 NW 180/65B16 81H). The fuel capacity is 6 gal (22.71 L) and the weight (in running order) is 812 lbs. (368.32 kg).

Harley Davidson Touring Dimensions: Road King Classic FLHRC

The length of the Road King Classic FLHRC is 94.20 in. (2392.68 mm). It is 37.50 in. (952.50 mm) wide and 55.10 in. (1399.54 mm) high. The seat height; 26.90 in. / 683.26 mm (Laden2): 29.50 in. / 749.30 mm (Unladen).

The ground clearance is 5.10 in. (129.54 mm) and the fork angle 29.2 degrees. The rake is 26 degrees and the wheelbase is 63.50 in. (1612.90 mm).

The tires of the Road King Classic FLHRC are Dunlop Harley Davidson Series, bias wide whitewall (front: D408F WWW 130/90B16 67H; rear: D407 WWW 180/65B16 81H). 6 gal (22.71 L) is the fuel capacity and the weight (running order) is 810 lbs. (367.41 kg).

Harley Davidson Touring Dimensions: Electra Glide Classic FLHTC

The length is 98.30 in. (2496.82 mm) and the width is 38.0 in. (965.20 mm). The height is 61.0 in. (1549.40 mm). The seat height specs: 27.30 in. / 693.42 mm (Laden2): 30.70 in. / 779.78 mm (Unladen). The ground clearance is 5.10 in. (129.54 mm) and the rake (steering head) is 26 degrees.

The trail is 6.69 in. (169.93 mm) and the fork angle is 29.2 degrees. The wheelbase is 63.50 in. (1612.90 mm). The bike’s tires are Dunlop Harley Davidson Series, bias narrow whitewall (front: D408F NW 130/80B17 65H; rear: D407 NW 180/65B16 81H).

Its fuel capacity is at 6 gal (equal to 22.71 L). The weight (in running order) is 864 lbs. (391.91 kg).

Harley Davidson Touring Dimensions: Electra Glide Ultra Limited FLHTK

The length of the Electra Glide Ultra Limited FLHTK is 98.60 in. (2504.44 mm) and the width is 38.0 in. (965.20 mm). The height is 61.0 in. (1549.40 mm). The seat height is 27.30 in. / 693.42 mm (Laden2): 30.70 in. / 779.78 mm (Unladen).

The fork angle is 29.2 degrees and the rake (steering head) is 26 degrees. The fuel capacity is 6 gal (equal to 22.71 L). The trail is 6.69 in. (169.93 mm) and the wheelbase is 63.50 in. (1612.90 mm).

The tires are Dunlop Harley Davidson Series, bias narrow whitewall (front: D408F NW 130/80B17 65H; rear: D407 NW 180/65B16 81H). The weight (running order) is 901 lbs. (408.69 kg).

The Harley Davidson Touring dimensions are part of what makes the bikes great; on the road, they can be imposing.
