Aircraft Wing Dimensions

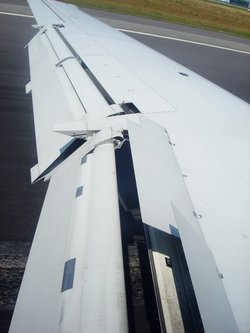

When looking at large planes, the size of their wings never fails to draw attention. Aircraft WingHere you can compare the wing size of some large aircraft.

Aircraft Wing Dimensions: Antonov An-225

The biggest aircraft ever built, its wingspan is 88.4 m (290 ft 2 in). The total wing area is 905 sq m (743.7 sq ft). The wing loading is 662.9 kg/m 2 (135.5 lb/ft 2). The plane is operated by six people.

The payload is 250,000 kg (550,000 lb). The aircraft is 84 m (275.6 ft) long and is 18.1 m (59.3 ft) high. The empty weight is 285,000 kg and the cargo volume is 46,000 cu ft. The maximum takeoff weight is 600,000 kg (1,323,000 lb). The takeoff run is 3,500 m (11,000 ft).

Aircraft Wing Dimensions: Boeing 777-200

Its wingspan is 199 ft 11 in (60.9 m) and the wing sweepback is 31.64 degrees. The tail is 60 ft 9 in (18.5 m). The aircraft’s overall length is 209 ft 1 in (63.7 m) and the cabin is 19 ft 3 in (5.86 m) wide. The fuselage is 20 ft 4 in (6.19 m) wide and the cargo capacity is 5,656 ft3.

The empty weight is 307,000 lb (139,225 kg). The takeoff weight is 545,000 lb (247,210 kg). The Boeing 777-200 has a fuel capacity of 31,000 US gal. The service ceiling is at 43,100 ft (13,140 m).

Aircraft Wing Dimensions: JRM-3 Mars

The JRM-3 Mars was the largest flying boat constructed by the Allies during World War II. The wingspan is 200 ft 0 in (60.96 m). The wing area is 3,686 sq ft (342.4 sq m). The payload is 32,000 lb (15,000 kg). The overall length is 117 ft 3 in (35.74 m) and has a capacity for 133 troops.

The JRM-3 Mars is 38 ft 5 in (11.71 m) high and has an empty weight of 75,573 lb (34,279 kg). The loaded weight is 90,000 lb (40,820 kg). The maximum takeoff weight is 165,000 lb (74,800 kg).

Aircraft Wing Dimensions: Blohm + Voss BV 238

The Blohm & Voss BV 238 was the largest aircraft built by the Axis Powers during World War II. The wingspan is 60.17 m (197 ft 5 in). The wing area is 362 sq m or 3,900 sq ft. The length is 43.36 m (142 ft 3 in) and the height is 12.80 m (42 ft). The empty weight is 54,700 kg (120,593 lb) and the maximum takeoff weight is 100,000 kg (220,460 lb).

The crew number 12 and the top speed is 425 km/h (264 mph). The wing loading is 261 kg / sq m and the service ceiling is 7,300 m (23,950 ft). The range is 7,200 km (3,886 nmi, 4474 mi) and the cruise speed is at 355 km/h (192 kn, 221 mph). The aircraft was first flown in April 1944.

The aircraft wing dimensions are among the most important parts of any aircraft. Their design goes a long way towards determining the agility of the vehicle.
