Slipform Paver Dimensions

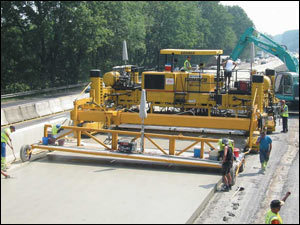

The slipform paver is a machine used for forming and finishing concrete surfaces. The machine is used on highways, ramps and other building projects.

GHP-2800 Slipform Paver Dimensions

The paving width is 12 ft. (3.66 m) to 25 ft. (7.62 m. If frame inserts and vibrators are added, the paving width will be 32 ft. (9.75 m). The two-track operational length is 12 ft. (3.66 m). The two-track operational width is 19 ft. 3.5 in. (5.88 m) to 32 ft. 3.5 in. (9.84 m).

The two-track operational height is 11 ft. 2 in. (3.4 m). The two-track minimum transport length is 19 ft. 3.5 in. (5.88 m) while the two-track minimum transport height is 10 ft. 3 in. (3.12 m). There are also 16 vibrators and 8 more may be added. There are also 16 vibrator circuits.

Engine Specifications and Service Capacities

The GHP-2800 slipform paver uses the Tier II Caterpillar C9, 8.8 liter diesel engine with 335 hp (249.9 kW) at 2200 rpm power. The hydraulic oil reservoir is 168 gal (635.9 L) and the fuel reservoir is 125 gal (473.2 L). Given the slipform paver dimensions, the engine provides sufficient power.

Two Track System Specifications

It has two gear-driven, hydraulically powered crawler tracks with a track pad width of 15.75 in. (400 mm). The track length is 12 ft. (3.66 m) with the fender. The track speed can reach 122 fpm (37.19 mpm). The GHP-2200 also has a 202:1 gear reduction (2 motors). The ground pressure 19 psi, based on 70,000 lb. (31,752 kg). The leg height adjustment is 36 in. (914 mm).

Four Track System Specifications

The track length is (with the track fender) 7 ft. 7 in. (2.31 m). The track width is 15.75 in. (400 mm) and the track speed is 73 fpm (22.3 mpm). The ground pressure is 19 psi, set on 82,000 lb. (37,195 kg). Each leg comes with leg mounted pivoting arms. This allows the leg to pivot 19 in. (483 mm) outside and 15 in. (381 mm) inside.


The two-track transport weighs 50,000 lbs (22,680 kg) and the operational weight is 70,000 lbs (31,752 kg). The four-track transport weight is 65,000 lbs (29,484 kg) and its operational weight is 82,000 lbs (37,195 kg).

The slipform paver dimensions are varied and the one cited here is indicated to give you an idea of what to expect. For this reason, the specifications have to be examined.
