Dimensions Guide

All these are 2010 Harley Davidson Sportster models. Aside from the dimensions, other technical information is provided as well.

Harley Davidson Sportster Dimensions: the XR1200

The XR1200 is 85.40 in. (2169.16 mm) long and 36.50 in. (927.10 mm) wide. It has a height of 45.10 in. (1145.54 mm). The seat is 29.20 in / 741.68 mm (Laden2) or 30.50 in / 774.70 mm (Unladen). The ground clearance is 5.80 in. (147.32 mm) while the rake is 29.3 degrees (steering head).

The trail is 5.12 in. (130.05 mm) and the wheelbase measures 59.80 in. (1518.92 mm). The tires are Dunlop Harley Davidson Series (front: D209 120/70ZR18 M/C; rear: D209 180/55ZR17 M/C). The fuel capacity is 3.50 gal (13.25 L). The weight in running order is 580 lbs. (263.09 kg). The transmission capacity is 1 qts (equal to 0.95 L).

Harley Davidson Sportster Dimensions: the Custom XL1200C

Its length is 90.30 in. (2293.62 mm) and the width is 32.70 in. (830.58 mm). The Custom XL1200C height is 45.70 in. (1160.78 mm). The seat height is 26.50 in / 673.10 mm (Laden2); 28.0 in / 711.20 mm (Unladen). The ground clearance is 4.40 in. (111.76 mm).

The trail measures 4.70 in. (119.38 mm) and the wheelbase is 60.40 in. (1534.16 mm). The rake (steering head) is 30.1 degrees. Tires are Dunlop Harley Davidson Series, blackwell (front: D402F MH90-21 54H; 401 150/80B16 71H). The fuel capacity is 4.50 gal (17.03 L). The weight (in running order) is 589 lbs. (267.17 kg).

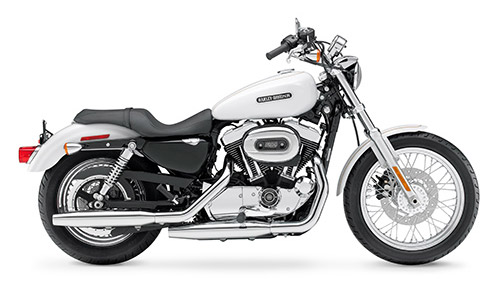

Harley Davidson Sportster Dimensions: the 1200 Low XL1200L

The XL1200L has an overall length of 89.10 in. (2263.14 mm) and a width of 35.20 in. (894.08 mm). The height is 46.80 in. (1188.72 mm). The seat height is 26.30 in / 668.02 mm (Laden2); 28.0 in / 711.20 mm (Unladen).

The ground clearance is 4.40 in. (111.76 mm) and the trail measures 4.70 in. (119.38 mm). The wheelbase is 59.70 in. (1516.38 mm). The rake (steering head) is 29.6 degrees.

The tires are Dunlop Harley Davidson Series blackwall (front: D401F 100/90-19 57H; rear; D401 150/80B16 71H). The fuel capacity is 4.50 gallons (17.03 L). Its weight in running order is 581 lbs. (263.54 kg)

Harley Davidson Sportster Dimensions: the 1200 Nightster XL1200N

Its length is 85.80 in. (2179.32 mm) and the width is 36.40 in. (924.56 mm). The height is 43.60 in. (1107.44 mm).The Nightster’s seat height is 25.30 in / 642.62 mm (Laden2); 26.30 in 668.02 mm (Unladen). The ground clearance is 3.90 in. (99.06 mm). The rake (steering head) is 29.6 degrees.

The trail is 4.60 in. (116.84 mm) and the wheelbase is 60.0 in. (1524.0 mm). The tires are Dunlop Harley Davidson series, blackwall (front: D401F 100/90-19 57H; rear: D401 150/80B16 71H). The fuel capacity of the 1200 Nightster is 3.30 gal (12.49 L). The weight in running order is 562 lbs. (254.92 kg).

The Harley Davidson Sportster dimensions are aspects of the bike all buyers should examine carefully. The few inches’ variation can make a big difference in terms of riding comfort.
