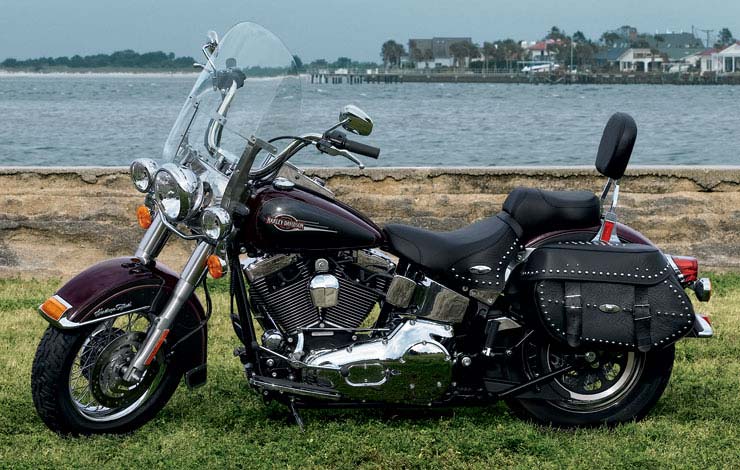

Also known as the Harley Davidson Heritage Softail Classic FLSTC, the Heritage is packed with numerous features. The following is an overview of its size specs and other features.

Harley Davidson Heritage Dimensions: Height, Width & Depth

The Heritage is 94.50 in. (2400.30 mm) long, 37.60 in. (955.04 mm) wide and 55.20 in. (1402.08 mm) high. The seat is 25.50 in. (647.70 mm) Laden / 27.10 in. (688.34 mm) Unladen. The trail is 5.80 in. (147.32 mm) and the fork angle is 31 degrees. The ground clearance is 5.10 in. (129.54 mm) and the rake (steering head) is 31 degrees.

The wheelbase is 64.50 in. (1638.30 mm). The tires of the Heritage are Dunlop Harley Davidson Series, bias blackwall (front: D402F MT90B16 72H; rear: D401 150/80B16 71H). The fuel capacity is 5 gal (18.93 L). The warning light is set at 1 gallon.

Harley Davidson Heritage Dimensions: Weight, Transmission and Headlamp

The transmission capacity is 1 qts (0.95 L) and the primary chain chase capacity is 1 qts (0.95 L). The weight in running order is 761.25 lbs. (345.30 kg). The gross vehicle weight rating is 1160 lbs. (526.18 kg). The gross axle weight rating is 430 lbs. / 195.05 kg (front) and 730 lbs. / 331.13 kg (rear). The oil capacity of the Heritage is 3.50 qts (3.31 L (with filter).

The Heritage comes with a 7 inch ball headlamp, and a directional light bar in chrome. There is also a speedometer fitted with a retro design.

Harley Davidson Heritage Dimensions: Chassis & Engine

The wheels at the front measure 16 in. x 3 in. (406.40 mm x 76.20 mm) and the rear is 16 in. x 3 in. (406.40 mm x 76.20 mm). As for the brakes, they are caliper type 4 piston (front and rear). The suspension travel specs are 5.10 in. (129.54 mm) for the front wheel and 4.30 in. (109.22 mm) for the rear wheel. The junctions are stamped and forged, and round tube sections are MIG welded.

The engine is air cooled and the valves are pushrod operated. The bore and stroke measure 3.75 in. x 4.38 in. (95.25 mm x 111.25 mm). The displacement is 96 cu. in. (1584 cc) and the compression ratio is 9.2:1. The primary drive chain ratio is 34/46. The transmission is 6-Speed Cruise Drive.

Harley Davidson Heritage Dimensions and Other Features

The gear ratios are as follows; 1st 9.311, 2nd 6.454, 3rd 4.793, 4th 3.882, 5th 3.307 and 6th 2.790. The Heritage is also equipped with a fuel tank sender designed to make reading simpler. The chrome exhaust has dual staggered mufflers and a 150 mm rear tire. The oil tank is chrome and the leather tank is two-tone.

The handlebar is ergonomically designed. The pillion is also detachable. There are also leather saddlebags featured as well as a removable king size windshield. Available colors are Vivid Black, Red Hot Sunglo, Flame Blue Pearl, Scarlet Red and many more.

The Harley Davidson Heritage dimensions are not the only things that make the bike so striking; it is also due to its numerous features, of which the above-mentioned are a summary.
