Dimensions Guide

The Harley Davidson Dyna motorcycles are numerous and knowing their technical specifications is a must for buyers. You can use the following as a guide so you’ll know what to expect when you look for a Dyna motorcycle.

Harley Davidson Dyna Dimensions: Super Glide FXD

Its length is 92.80 in. (2357.12 mm) and the width is 36.70 in. (932.18 mm). The height of the Super Glide is 48.50 in. (1231.90 mm). The seat height is 26.30 in. / 668.02 mm (Laden2); 26.50 in. / 673.10 mm (Unladen). The rake (steering head) is 29.6 degrees and the ground clearance is 4.60 in. (116.84 mm). The trail measures 4.70 in. (119.38 mm).

Its wheelbase is 64.20 in. (1630.68 mm). The tires are Michelin Scorcher (front: "31" 100/90-19 57H; rear: "31" 160/70-17 73V). Its fuel capacity is 4.70 gal (17.79 L). The weight in running order is 663 lbs. (300.74 kg). The transmission capacity is 1 qts (0.95 L).

Harley Davidson Dyna Dimensions: Street Bob FXDB

The length of the Street Bob FXDB is 92.80 in. (2357.12 mm) and the width is 37.50 in. (952.50 mm). The height is 50.40 in. (1280.16 mm). The seat height is 25.50 in. / 647.70 mm (Laden2); 26.70 in. / 678.18 mm (Unladen).

The ground clearance is 4.92 in. (124.97 mm). The rake (steering head) is 29 degrees. The trail is 4.70 in. (119.38 mm) and the wheelbase measures 64.20 in. (1630.68 mm).

Its tires are Michelin Scorcher (front: "31" 100/90-19 57H; rear: "31" 160/70-17 73V). The fuel capacity is 4.70 gal (17.79 L). The weight in running order is 667 lbs. (302.55 kg). The transmission capacity is 1 qts (0.95 L).

Harley Davidson Dyna Dimensions: Super Glide Custom FXDC

The Super Glide Custom FXDC is 92.90 in. (2359.66 mm) long, 38.90 in. (988.06 mm) wide and 48.50 in. (1231.90 mm) high. The seat height is 26.30 in. / 668.02 mm (Laden2); 26.50 in. / 673.10 mm (Unladen).

The trail measures 4.70 in. (119.38 mm) and the ground clearance is 4.60 in. (116.84 mm). The rake (steering head) is 29 degrees. The wheelbase measures 64.20 in. (1630.68 mm). The tires are Michelin Scorcher (front: "31" 100/90-19 57H; rear: "31" 160/70-17 73V).

5 gal (18.93 L) is the fuel capacity. The running order weight is 676 lbs. (equal to 306.63 kg). Like the other models, the transmission capacity is 1 qts (0.95 L).

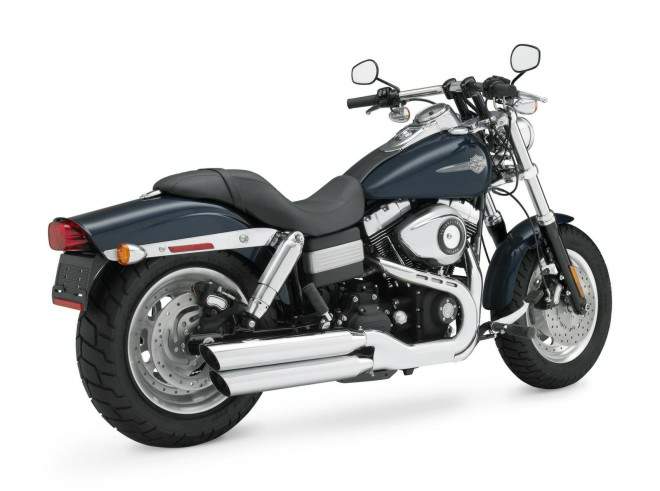

Harley Davidson Dyna Dimensions: Fat Bob FXDF

The length of the Fat Bob FXDF is 91.70 in. (2329.18 mm). The width is 35.0 in. (889.0 mm) and the height is 44.50 in. (1130.30 mm). The seat height is 26.10 in. / 662.94 mm (Laden2); 27.0 in. / 685.80 mm (Unladen). The ground clearance is 4.92 in. (124.97 mm) and the rake (steering head) is 29 degrees.

The trail measures 4.92 in. (124.97 mm) and the wheelbase is 63.70 in. (1617.98 mm). The tires are Dunlop Harley Davidson Series, bias blackwall (front: D427F 130/90B16 67H; rear: D427 180/70B16 77H). The fuel capacity is 5 gal (18.93 L). The weight of the Fat Bob FXDF (running order) is 703 lbs. (318.88 kg).

The Harley Davidson Dyna dimensions are similar in many respects. However, some specs differ (i.e., tires). Be sure to check them out before you buy.
